The Digiline System

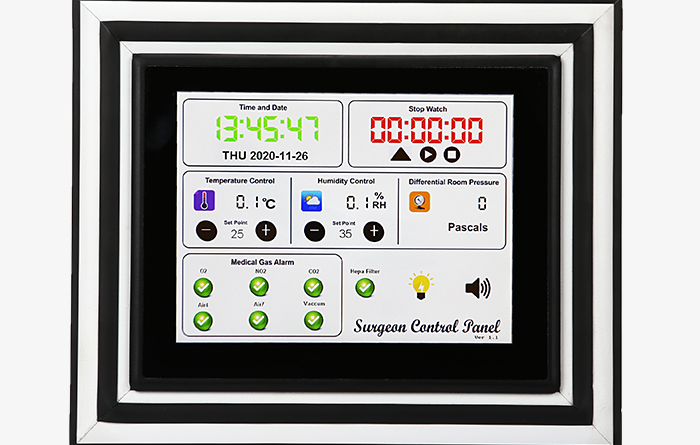

Touch Screen Surgeon Control Panel
With the Touch Screen Sensitive Monitor (which can be operated directly at the touch of a finger), operating and monitoring of technical equipment in medical locations and other areas could not be simpler. The graphical interface is capable of displaying all kinds of complex topologies. The status and command information/follow-up action information is presented in a manner that is well-structured and clear.
Specification :
- Screen Size: 22inches
- Model Name/Number: TSCP-VX
- Voltage: AC 100-240V
- Frequency: 50/60 Hz
- Operating System: Windows
- Power Consumption: 100 watts
- Display Type: Led
- Brand: Digiline
- Resolution: 1920x1080 Pixel HD
- Brightness: 450 cd/m2 min.
- Contrast: 1000:1
- Viewing Angle: Horizontal
- Number of Colors: 16.2 Million
- Response Time: 25 ms
- Booting Time: 30 - 35 Seconds
- Software Version: VX 3.0
- CPU: Intel Celeron 2.4 Ghz
- RAM: 2 GB
- Storage: 60 GB SSD
- Graphic: VGA, HDMI
- Interfaces: 4xUSB, 2xSerial, 1xLan
- Panel Weight: 15 Kg
- Wall Insert Box Cut Out: 615 x 425 x 130 mm
